Description

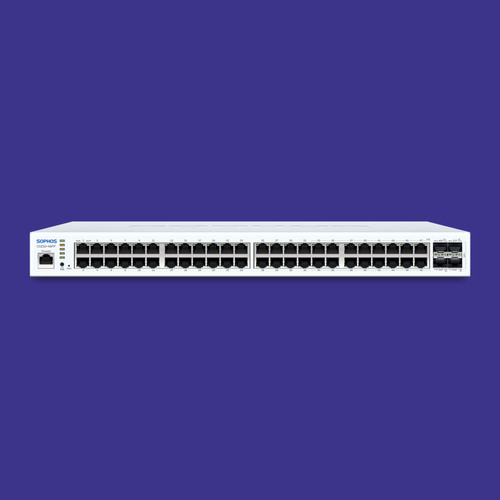

Sophos Switch CS210-48FP - 48 port (16x2.5G) with Full PoE, with Support 1-year subscription
The Sophos CS210-48FP is a managed 200 Series switch with 32 x 1 GbE + 16 x 2.5 GbE copper ports and a 740W PoE budget, managed from Sophos Fusion alongside your firewall and access points. This listing is Switch Support and Services for 1 year, Sophos part number LS24FZ12ZZPCUS.
- Part numberLS24FZ12ZZPCUS
- Ports32 x 1 GbE + 16 x 2.5 GbE copper
- Uplinks4 x 1/10G SFP+
- PoE budget740W
- Support1 year included
Who it is for
Larger office or floor
48 ports in one rack unit for a busy floor or wiring closet, with 10G SFP+ uplinks.
Powers your devices
A 740W PoE budget runs phones, cameras and access points from the switch: 48 at 15.4W or 24 at 30W.
Managed with the rest of your Sophos estate
Run it from Sophos Fusion with your Sophos Firewall and AP6 access points. Active Threat Response takes threat feeds from Sophos MDR, Sophos XDR or third-party tools and isolates a compromised device across your switches and access points.
What is included
- The Sophos CS210-48FP switch with a limited lifetime warranty (lifetime ends at the Sophos End-of-Life date for the model).
- Local management included: web interface, CLI and SNMP, with no subscription.
- Sophos Fusion management (formerly Sophos Central) for this switch, including scheduled firmware updates, virtual stacking and Active Threat Response.
- Firmware updates for 1 year.
- Advance hardware replacement (advanced RMA) under the Sophos hardware replacement policy.
- 24/7 phone support from Sophos, with remote access so Sophos support staff can troubleshoot the switch.
- Network features: VLANs including voice and guest VLANs, 802.1X and MAC authentication bypass, LACP link aggregation, RSTP/MSTP, IGMP snooping, DHCP snooping, static routing, QoS and port mirroring.
- Transceivers for the SFP or SFP+ ports are ordered separately.
Support and Services matters here: it is what lets you manage the switch from Sophos Fusion. This listing includes it for 1 year. Renew before it ends to keep Fusion management, firmware updates and advance replacement.
Specifications
| Model | Sophos CS210-48FP (200 Series) |
|---|---|
| Access ports | 32 x 1 GbE + 16 x 2.5 GbE copper |
| Uplink ports | 4 x 1/10G SFP+ |
| PoE standard | 802.3af/at |
| PoE budget | 740W |
| PoE devices at once | 48 at 15.4W or 24 at 30W |
| Switching capacity | 224 Gbps |
| MAC address table | 32K |
| Packet buffer | 2 MB |
| VLANs | Up to 256 at once, from the full 4096 VLAN ID range |
| Jumbo frames | 10K, set per port |
| Form factor | 1U rackmount |
| Management | Sophos Fusion, formerly Sophos Central (with Support and Services); local web UI, CLI and SNMP included |
| Warranty | Limited lifetime, ends at the Sophos End-of-Life date |
Compare Sophos switches
Every Sophos switch is managed the same way. The difference is port count, port speed and how much PoE power it has.
| Model | Access ports | Uplinks | PoE budget | Switching capacity |
|---|---|---|---|---|
| CS101-8 | 8 x 1 GbE copper | 2 x 1G SFP | No PoE | 20 Gbps |
| CS101-8FP | 8 x 1 GbE copper | 2 x 1G SFP | 110W | 20 Gbps |
| CS110-24 | 24 x 1 GbE copper | 4 x 1/10G SFP+ | No PoE | 128 Gbps |
| CS110-24FP | 24 x 1 GbE copper | 4 x 1/10G SFP+ | 410W | 128 Gbps |
| CS110-48 | 48 x 1 GbE copper | 4 x 1/10G SFP+ | No PoE | 176 Gbps |
| CS110-48P | 48 x 1 GbE copper | 4 x 1/10G SFP+ | 410W | 176 Gbps |
| CS110-48FP | 48 x 1 GbE copper | 4 x 1/10G SFP+ | 740W | 176 Gbps |
| CS210-8FP | 8 x 2.5 GbE copper | 4 x 1/10G SFP+ | 240W | 120 Gbps |
| CS210-24FP | 16 x 1 GbE + 8 x 2.5 GbE copper | 4 x 1/10G SFP+ | 410W | 152 Gbps |
| CS210-48FP (this model) | 32 x 1 GbE + 16 x 2.5 GbE copper | 4 x 1/10G SFP+ | 740W | 224 Gbps |
| CS1010-8FP | 8 x 1/2.5/5/10 GbE copper | 4 x 1/10G SFP+ | 410W | 120 Gbps |
Upgrade path
- Sophos CS210-48FP (this listing). 32 x 1 GbE + 16 x 2.5 GbE copper, 740W PoE.
- Sophos CS1010-8FP. The next step up: eight 10 GbE multi-gigabit ports for Wi-Fi access points, servers or storage next to it.
- Sophos AP6 access points. Wi-Fi managed in the same Sophos Fusion console, with Active Threat Response.
- Sophos Firewall. Adds more automatic response actions to Active Threat Response.
- Sophos MDR. A 24/7 Sophos team whose detections can trigger Active Threat Response on the switch.
All options for the Sophos CS210-48FP
| Option | One-time | 1 year | 2 years | 3 years | 5 years |
|---|---|---|---|---|---|
| Switch only (no support term) | View | - | - | - | - |
| Switch with Support and Services | - | This listing | - | View | View |
| Support and Services, new | - | View | View | View | - |
| Support and Services, renewal | - | View | View | View | - |
| Other terms or several switches | Ask Nuformat for a quote: support for this model, extra units or a mixed order | ||||
Frequently asked questions
What happens when the included support ends?
Renew Switch Support and Services for the CS210-48FP. If it lapses, Sophos Fusion management becomes read-only, firmware updates stop, and 24/7 phone support and advance replacement end. The switch keeps working with its local configuration.
What warranty does it have?
A Sophos limited lifetime warranty. Under the Sophos hardware replacement policy, the lifetime ends at the End-of-Life date for the model, and advance replacement needs an active support subscription.
How many PoE devices can it power?
Sophos lists 48 at 15.4W or 24 at 30W, from a total budget of 740W. Add up the wattage of your cameras, phones and access points and we will check it fits.
Does it need a Sophos Firewall?
No. It works as a standalone managed switch, and Sophos says Active Threat Response on the switch does not need a Sophos Firewall. With a Sophos Firewall you get more automatic response actions.
Are transceivers included?
Plan them separately for the SFP or SFP+ ports you use. Tell us the cable run and we will quote the right optic or copper module.
How do I order?
Add it to your cart, or send us your device count and PoE needs and we will confirm the model and quote any support term or transceivers.
Get the right switch, first time
Nuformat is a Sophos partner serving Canada and the United States. Send us how many devices you need to connect and which need PoE, and we will confirm the model, power budget and support term.
Request a quoteSpecifications, management and support terms from the Sophos Switch Series datasheet (25-06-11); warranty from the Sophos hardware replacement policy, checked October 11, 2026. Pricing and availability confirmed by Nuformat at quotation. Sophos Switch 200 Series · All Sophos switches
