Technical Specifications
XGS 4500 with Standard Protection, 1-year
| Performance | |
|---|---|
| Firewall throughput | 80,000 Mbps |
| Firewall IMIX | 37,000 Mbps |
| Firewall Latency (64 byte UDP) | 4 μs |
| IPS throughput | 36,500 Mbps |
| Threat Protection throughput | 31,850 Mbps |
| NGFW | 30,000 Mbps |
| Concurrent connections | 17,000,000 |
| New connections/sec | 450,000 |
| IPsec VPN throughput | 75,550 Mbps |
| IPsec VPN concurrent tunnels | 8,500 |
| SSL VPN concurrent tunnels | 10,000 |
| Xstream SSL/TLS Inspection | 10,600 Mbps |
| Xstream SSL/TLS concurrent connections | 276,480 |
| Physical Interfaces | |
|---|---|
| Storage (local quarantine/logs) |
2 x min. 240 GB SATA-III SSD (SW RAID-1) |
| Ethernet interfaces (fixed) |

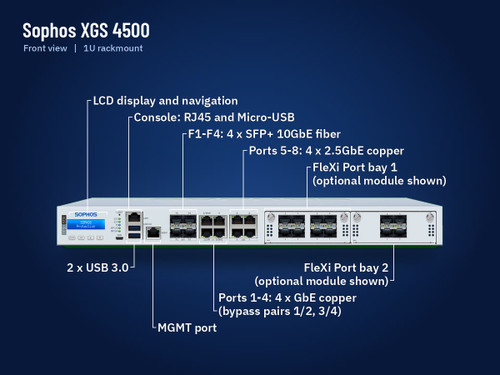

4 x GE copper 4 x 2.5 GE copper 4 x SFP+ 10 GE fiber* |
| Bypass port pairs | 1 |
| Management ports | 1 x RJ45 MGMT 1 x COM RJ45 1 x Micro-USB (cable incl.) |
| Other I/O ports | 2 x USB 3.0 (front) |
| Number of Flexi Port slots | 2 |
| Flexi Port modules (optional) |
8 port GE copper 8 port GE SFP fiber 4 port 10 GE SFP+ fiber 4 port GE copper bypass (2 pairs) 4 port GE copper PoE + 4 port GE copper 4 port 2.5 GE copper PoE 2 port GE Fiber (LC) bypass 4 port GE SFP Fiber |
| Max. total port density (incl. use of modules) |
28 |
| Max. Power-over-Ethernet (using FlexiPort module) |
2 modules: 4 ports, 60W max. each |
| Optional add-on connectivity | SFP, DSL module (VDSL2) SFP/SFP+ Transceivers |
| Display | Multi-function LCD module |
| Physical Specifications | |
|---|---|
| Mounting | 1U rackmount (sliding rails incl.) |
| Dimensions: Width x height x depth |
438 x 44 x 510 mm |
| Weight | 9.7 kg/21.38 lbs (unpacked) 15.9 kg/35.05 lbs (packed) |
| Environment | |
|---|---|
| Power supply | Internal Hot Swappable auto-ranging AC-DC 100-240VAC, 3.7-7A@50-60 Hz External Redundant PSU Option Internal Redundant PSU Option |
| Power consumption | 151 W/515.74 BTU/hr (idle) 268.35 W/916.56 BTU/hr (max.) |
| PoE addition enabled | 152 W/519 BTU/hr |
| Operating temperature | 0°C to 40°C (operating) -20°C to +70°C (storage) |
| Humidity | 10% to 90%, non-condensing |
| Product Certifications | |
|---|---|
| Certifications | CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SipPP |
Note:*Transceivers (mini GBICs) sold separately
| Xstream Protection Bundle | Available Separately | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Protection | Available Separately | |||||||||
| Base Firewall | Network Protection | Web Protection | DNS Protection | Bundle Only Features | Zero-Day Protection | Central Orchestration | Central Firewall Reporting Adv | Email Protection | Web Server Protection | |
Firewall Brochure Please note: Some feature listings are not supported on XGS 87 and XGS 88 models
(on-box reporting, dual AV scanning, WAF AV scanning and email message transfer agent (MTA) functionality)
Licensing options differ slightly to the above
Data storage duration is an estimate based on average network usage and will vary depending on actual log data volume.
Included with any bundle, support, or protection subscription. Customers with a Base License only must add support to be eligible for these features.
