Sophos Wireless AP6 420E access point Wi-Fi 6/6E
Sophos AP6 420E is Cloud-managed Wi-Fi 6 access points for indoor use. AP6 420E is a great option to expand the wi-fi reach for small offices and rooms.
Simple Wifi - Easy to setup
Sophos wireless and unified cloud management platform simplify your wireless network management and security, saving you time and resources.
2 ways to manage: cloud managed or local
3 fast steps to connect: Create a wireless network, register your access point, and connect! That it, simple.
Highlights of Benefits;
Scalable cloud platform for remote management
Local web interface to manage a single AP
Better performanc and security with Wi-Fi 6/6E access points
Active Threat Response for compromised host isolation
Captive portal for guest and visitor access
Centralized management alongside the entire Sophos ecosystem of cybersecurity solutions such as Sophos firewall XGS services, Sophos Endpoint and Server, Sophos Email, Sophos Switch, Sophos Mobile, Sophos Phish Threat and more.
Note: AP6 wireless product can be managed via cloud platform (Sophos Central) or local. AP6 Series access points cannot be managed from any Sophos firewall.
DEPLOYMENT:
INDOOR
USAGE:
All-purpose, medium density, higher in dual 5 GHz mode, e.g. education
STANDARD:
WI-FI 6/ WI-FI 6E (802.11AX)
RADIO BANDS:
2.4 GHz, 5 GHz, 6 GHz
MANAGEMENT
Sophos Central cloud platform (no cost)
Local User Interface (single AP)
AP6 Series cannot be managed from any Sophos Firewall
USAGE
General purpose, low to medium density.
Example, Retail, small education (K12), small to medium office, small CPA firm, small healthcare office, other verticles.
Modern environments with 6GHz clients.
RADIO SPECIFICATION:
2x2:2, Tri Radio
2.4 GHz single band
5 GHz single band
6 GHz singl band
MAX. THEORETICAL DATA RATES:
5375 Mbps
575 Mbps (2.4 GHz) +
2400 Mbps (5 GHz) +
2400 Mbps (6 GHz)
ANTENNAS:
6 Internal omnidirectional
2x 2.4GHz antenna
2x 5 GHz antenna
2x 6 GHz antenna
DFS (Dynamic Frequency Selection):
Yes
MOUNTING:
Desktop, wall, or ceiling mount
MOUNTING Kit:
Bracket for wall and ceiling mount (15/16’’ or 9/16’’ T-bar).
Optional:
Kits for flat-ceiling, plenum, and suspend mount.

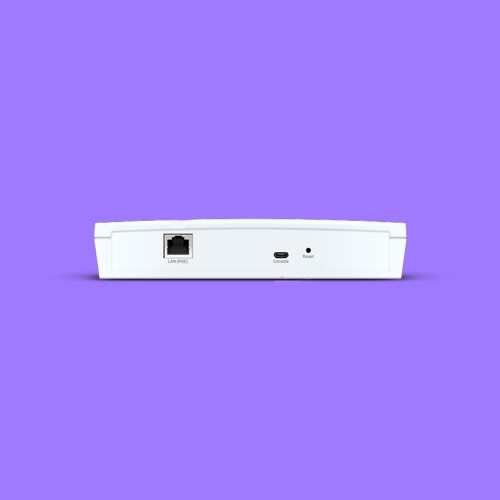

INTERFACES:
1x 12V DC-in
1x RJ45 2.5 MultiGigabit Ethernet port with 802.3at PoE+
Micro-USB console
POWER REQUIREMENT (PSE):
24.25W
POWER-OVER-ETHERNET:
PoE+ 802.3at
DIMENSIONS:
183x35x183 mm (WxHxD)
WEIGHT:
0.7 kg
CERTIFICATIONS AND COMPLIANCE:
CB, UL, CE, FCC, ISED, RCM, TEC
Plenum-rated (UL2043)
EN 60601-1-2 (Medical Equipment Directive)
