Technical Specifications
XGS 3100 with Standard Protection, 1-year
| Performance | |
|---|---|
| Firewall throughput | 47,000 Mbps (XGS 2100) |
| Firewall IMIX | 23,500 Mbps (XGS 2100) |
| Firewall Latency (64 byte UDP) | 4 μs |
| IPS throughput | 10,500 Mbps (XGS 2100) |
| Threat Protection throughput | 7400 Mbps (XGS 2100) |
| NGFW | 9,000 Mbps (XGS 2100) |
| Concurrent connections | 12,260,000 (XGS 2100) |
| New connections/sec | 186,600 (XGS 2100) |
| IPsec VPN throughput | 25,000 Mbps (XGS 2100) |
| IPsec VPN concurrent tunnels | 6,500 |
| SSL VPN concurrent tunnels | 5,000 |
| Xstream SSL/TLS Inspection | 2470 Mbps (XGS 2100) |
| Xstream SSL/TLS concurrent connections | 55,296 (XGS 2100) |
| Physical Interfaces | |
|---|---|
| Storage (local quarantine/logs) |
Integrated min. 240 GB SATA-III SSD |
| Ethernet interfaces (fixed) |

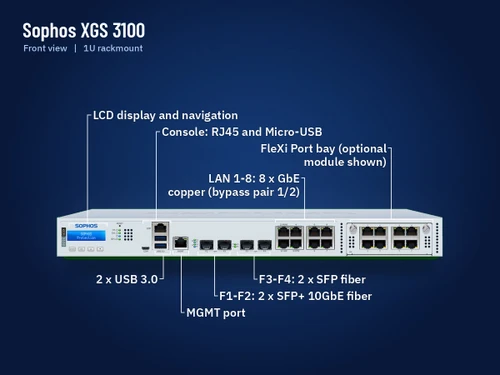

8 x GE copper 2 x SFP fiber* 2 x SFP+ 10 GE fiber* |
| Bypass port pairs | 1 |
| Management ports | 1 x RJ45 MGMT 1 x COM RJ45 1 x Micro-USB (cable incl.) |
| Other I/O ports | 2 x USB 3.0 (front) 1 x USB 2.0 (rear) |
| Number of Flexi Port slots | 2 |
| Flexi Port modules (optional) |
8 port GE copper 8 port GE SFP fiber 4 port 10 GE SFP+ fiber 4 port GE copper bypass (2 pairs) 4 port GE copper PoE + 4 port GE copper 4 port 2.5 GE copper PoE 2 port GbE Fiber (LC) bypass 4 port GE SFP Fiber |
| Max. total port density (incl. use of modules) |
26 |
| Max. Power-over-Ethernet (using FlexiPort module) |
1 module: 4 ports, 60W max. |
| Optional add-on connectivity | SFP, DSL module (VDSL2) SFP/SFP+ Transceivers |
| Display | Multi-function LCD module |
| Physical Specifications | |
|---|---|
| Mounting | 1U rackmount (2 rackmount ears included) |
| Dimensions: Width x height x depth |
438 x 44 x 405 mm |
| Weight | 4.7 kg/10.36 lbs (unpacked) 7 kg/15.43 lbs (packed) |
| Environment | |
|---|---|
| Power supply | Internal auto-ranging AC-DC 100-240VAC, 3-6A@50-60 Hz External Redundant PSU Option |
| Power consumption | 50 W/170.77 BTU/hr (3100 idle) 50 W/170.77 BTU/hr (3300 idle) 182 W/621.97 BTU/hr (3100 max.) 201 W/686.68 BTU/hr (3300 max.) |
| PoE addition enabled | 76 W/260 BTU/hr (max.) |
| Operating temperature | 0°C to 40°C (operating) -20°C to +70°C (storage) |
| Humidity | 10% to 90%, non-condensing |
| Product Certifications | |
|---|---|
| Certifications | CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SipPP |
Note: *Transceivers (mini GBICs) sold separately
| Xstream Protection Bundle | Available Separately | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Protection | Available Separately | |||||||||
| Base Firewall | Network Protection | Web Protection | DNS Protection | Bundle Only Features | Zero-Day Protection | Central Orchestration | Central Firewall Reporting Adv | Email Protection | Web Server Protection | |
Firewall Brochure Please note: Some feature listings are not supported on XGS 87 and XGS 88 models
(on-box reporting, dual AV scanning, WAF AV scanning and email message transfer agent (MTA) functionality)
Licensing options differ slightly to the above
Data storage duration is an estimate based on average network usage and will vary depending on actual log data volume.
Included with any bundle, support, or protection subscription. Customers with a Base License only must add support to be eligible for these features.
